We recently helped a client set up an external boot drive on a Mac mini for testing, but the installation kept failing right near the end with vague, unhelpful errors. We swapped cables, tried a different drive, retried the install… all the usual steps. No luck.
Next, we moved the SSD to a different USB-C port. The install completed immediately.
The port wasn’t broken. It was just the wrong one.
All the USB-C ports on a Mac look identical, but they’re not always interchangeable behind the scenes. On Apple silicon Macs and Intel Macs with the T2 chip, one of those ports is designated as the DFU (device firmware update) port. Most of the time, you’ll never notice a difference. Plug something in, it works, end of story. But in certain situations, the specific port does matter.
(Quick note: we’re calling them USB-C ports here, even though many are technically Thunderbolt. Apple uses USB-C to describe the connector, so we’re sticking with that.)
When It Matters Which Port You Use
The DFU port exists for one specific purpose: reviving or restoring a Mac’s firmware using another Mac and Apple Configurator. It’s not something you’ll need often, but it can come up if a Mac won’t start, shows a blank screen, or runs into serious installation issues.
For everyday use, the DFU port should behave like any other. But there’s one important exception on Apple silicon Macs. If you’re installing or updating macOS on an external drive, avoid using the DFU port.
If you don’t, the install can fail partway through, usually without a clear explanation. You might see something like “Some updates could not be installed” or a cryptic error code, but nothing that points to the port as the issue. Once the install is complete, you can use any port normally.
We’ve also seen other cases where a device behaves unpredictably until it’s connected to a different port. It doesn’t always present as a port issue, but it’s often a quick way to resolve it.
Finding Your Mac’s DFU Port

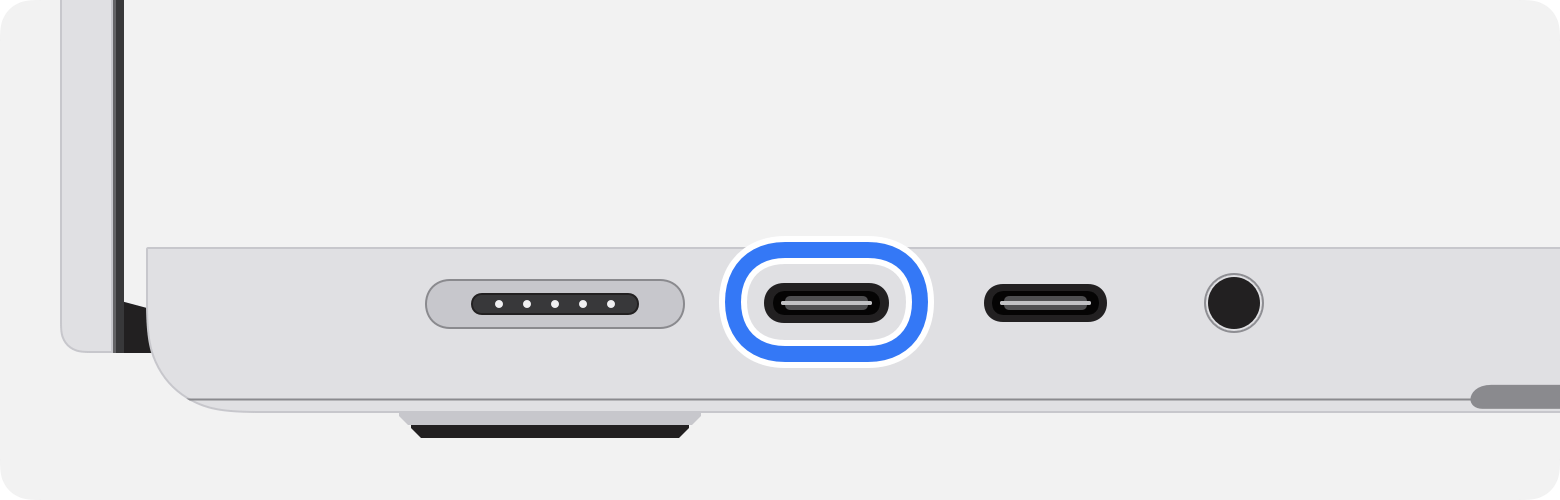

Apple provides a support document that shows which port is the DFU port for each Mac model. The exact location varies depending on the device and even the generation.
There’s no label on the Mac itself, so you’ll need to reference Apple’s documentation. And since that information hasn’t always been perfectly consistent, it’s still worth trying a different port if something isn’t working as expected, even if you believe you’re using the correct one.
DFU Port Takeaways
For most tasks, you don’t need to think about port selection. Displays, drives, and docks should work fine wherever you plug them in.
But if you’re setting up an external boot drive or installing macOS on one, take a moment to avoid the DFU port. And if something isn’t behaving the way it should, treat the port itself as part of the troubleshooting process. Before digging into cables, drives, or software, move the connection to another USB-C port.
It’s a simple step, but it can save a significant amount of time chasing issues that aren’t immediately obvious.
